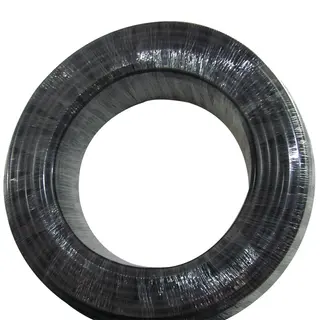

Drip Tube, OD 20 mm, TK 1.3 mm, Max 0.40 MPa
Short Description
Model No.: TPLP2013 Hits: 24
Drip Tube made from LDPE Plastic Original Material, Anti-UV，Extrusion Molding.
Request a quote ShareTags:
Key Specifications / Features
Diameter: 20 mm.
Thickness: 1.3 mm.
Pressure: 0.40 MPa.
Gross Weight: 14.5 kg.
Package: 200 Meter/Roll.
Package Size: 80 x 35 cm.
Specifications:
Thickness: 1.3 mm.
Pressure: 0.40 MPa.
Gross Weight: 14.5 kg.
Package: 200 Meter/Roll.
Package Size: 80 x 35 cm.
Specifications:
| NO. | Name | Diameter x Thickness (MM) | Pressure | G.W (KG) | Package (M/Roll) | Size (CM) |
| TPLP1208 | LDPE Pipe | 12x0.8 | 0.25MPa | 14 | 500M | 70x32 |
| TPLP1210 | 12x1.0 | 0.40MPa | 17.5 | 500M | 70x32 | |
| TPLP1214 | 12x1.4 | 0.80MPa | 23.5 | 500M | 70x32 | |
| TPLP1610 | 16x1.0 | 0.40MPa | 24 | 500M | 90x35 | |
| TPLP1612 | 16x1.2 | 0.63MPa | 28 | 500M | 90x35 | |
| TPLP1614 | 16x1.4 | 0.80MPa | 32 | 500M | 90x35 | |
| TPLP1616 | 16x1.6 | 1.00MPa | 36 | 500M | 90x35 | |
| TPLP2013 | 20x1.3 | 0.40MPa | 14.5 | 200M | 80x35 | |
| TPLP2015 | 20x1.5 | 0.80MPa | 18 | 200M | 80x35 | |
| TPLP2020 | 20x2.0 | 1.00MPa | 23 | 200M | 80x35 | |
| TPLP2212 | 22x1.2 | 0.40MPa | 15.5 | 200M | 90x32 | |
| TPLP2214 | 22x1.4 | 0.63MPa | 18 | 200M | 90x32 | |
| TPLP2215 | 22x1.5 | 0.80MPa | 19.5 | 200M | 90x32 | |
| TPLP2514 | 25x1.4 | 0.40MPa | 21 | 200M | 90x35 | |
| TPLP2518 | 25x1.8 | 0.63MPa | 26.5 | 200M | 90x35 | |
| TPLP2520 | 25x2.0 | 0.80MPa | 29 | 200M | 90x35 | |
| TPLP2523 | 25x2.3 | 1.00MPa | 34 | 200M | 100x35 |
